Rebirth Vespa Primavera

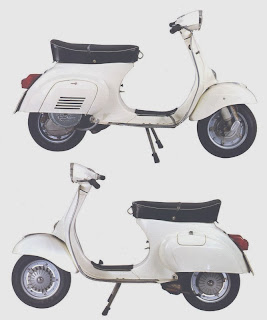

Vespa 125 Primavera (VMA2) 1967 - 1983

TECHNICAL INFORMATIONS

Cubic capacity : 121.1 cc

Power : 5.6 hp

Bore x Stroke : 55 x 51 mm

Manufacturer of the engine : Piaggio

Type of the engine : 2 stroke, Single/One-cylinder

Max. speed : 90 km/h - 4 gears
Suspension: Elastic with Coil Spring & Hydraulic
Shock Absorber on both wheels

Tyres : [AV] 3.00 x 10", [AR] 3.00 x 10"

Brakes: Drum

Tank : 5.6 liters

Consumption : 2 l/100 km

Weight : 74 kg

I’m sure Vespa fans the world over know of the Primavera, a smallframe 125cc 2-stroke scooter produced by Piaggio from the early 1960s until the late 1990s.

Derived from the Vespa 125 VMA1, the Vespa 125 Primavera ("Spring") met with immediate success. Easy to handle, trim, quick, powerful, are some of the adjectives that describe the Vespa Primavera in the 1960s. The young are the main characters of the spot "Con Vespa si può" ("With Vespa it’s possible") that addresses teens above 16 who love sport and nature, and do not like to get stuck in the traffic and be late for dates with friends.

The main feature is a longer frame, which permits an easier transportation of the passenger.


Piaggio also produced a ‘sports’ version too, the Primavera ET3, back in the days when an alternative to the range meant things like a higher performance 3-port cylinder and electronic ignition, and not just a few extra graphics that will cost you £250 more!

Vespa 125 Primavera ET3 1976 - 1983

TECHNICAL INFORMATIONS

Cubic capacity : 121.1 cc
Power : 7 hp
Bore x Stroke : 55 x 51 mm
Manufacturer of the engine : Piaggio
Type of the engine : 2 stroke, One-cylinder
Max. speed : 90 km/h - 4 gears
Suspension: Coil spring & amp; Hydraulic Shock Absorber  on both wheels
Tyres : [AV] 3.00 x 10", [AR] 3.00 x 10"
Brakes: Drum
Tank : 5.6 liters
Consumption : 2 l/100 km
Weight : 78 kg

The Vespa Primavera ET3 is a specific, limited-edition variant (144,000 units were produced overall) of the Vespa “Primavera”. The initials ET3 indicate that the vehicle had electronic ignition and that the engine's single cylinder had a third transfer port. The smaller-sized body, like that of the Vespa 50cc, gave the vehicle more manoeuvrability, a feature that made this Vespa the favourite of 1970s youngsters. The seat the colour of blue jeans of the first few units produced reveals the link between the young and the Primavera ET3. The 125cc ET3's engine resembled the Primavera's from the outside but was much faster and more powerful (7 bhp), so that for a long time it was the speediest Vespa of its category.



The new Primavera however, will be powered by the same 125cc, 3-valve, 4-stroke air-cooled engine that the Vespa LX and 946 use, and will also have an LCD speedometer reminiscent of those from the original Primavera or the 1970s. However this new Vespa is heavily inspired by the Vespa 946. Is it true???

To be continued on next post..

#vespaprimavera #primavera #history #vespa #scooter #retro #perfectgifts #fakta #peopleschoice

Vespa 946 : Very Handmade Vespa Scooter

Attention to detail has been an integral part of the project right from the start. But when the Vespa 946 moves along the production line, then it really becomes a unique item. From the first stitching on the leather handle grips to the final polish, everything is done by hand, with the same care as a couturier for his creations. From the press shop to the tumble finishing, the attention and passion is that of an artist's atelier. Because a craftsman is an artist.
#vespa946 #vespa #scooter #handmade #peopleschoice #amexbestbuy #confident

Credit to : VespaOfficial

Born of Vespa - Classic VS Modern

Historical Video of Vespa showing Corradino D'Ascanio, the father of Vespa, in the making of the world famous scooter. Vespa 98, 1946 - The first Vespa. It was powered by a 98 cc engine that delivered 3.2 bhp at 4,500 rpm with a top speed of 60 km/h.

THE VESPA PRIMAVERA LEGEND IS BACK

New body, new wheel sizes, new front suspension, new electronic injection system for unbeatable low emissions. The Primavera is a highly modern Vespa, designed with the elegance of an exclusive style but without renouncing the comfort aspect.


The new Vespa Primavera represents an important point of evolution in the Vespa story. During the design phase, every solution focused on increasing the level of comfort, safety and driving pleasure compared with the previous (and even recent) generations, continuing an evolution that, for almost 70 years and after more than 18 million vehicles sold over the five continents, makes Vespa the youngest and best-loved two-wheeler in the world.

Credit to : VespaOfficial

Perhimpunan Skuter Kebangsaan 2012 (PSK12)

EVENT : PSK12 BIKE FEST (in conjunction with KLIAF)
DATES : 27th, 28th & 29th of April 2012
TIME : 10:00am - 12:30 mid
LOCATION : Mines MIECC, Seri Kembangan, Selangor, Malaysia

PRESENTED BY:
=========
- MUSC Motorsports


EVENT PARTNERS:
===========
- International Professional Trade Organizer (IMK)
- Persatuan Vespa Wilayah Persekutuan (PVWP)
- TS Racing Team


ENTRY FREE - RM30/PERSON (Valid for 3-Days)
=============================
- Receive Official PSK12 Participant Tag
- Receive Official PSK12 Tee Shirt
- Receive Official PSK12 Sticker
- Receive Accommodation Tag (in-door hall, with air-cond)
- Receive Pack of Food & Beverage (upon arrival)
- Receive Tag for Bike Autoshow Competition (free)
- Receive Tag for Sprint-Test (discount voucher worth RM30)
- Receive Lucky Draw number


1. DRAG RACE / SPRINT-TEST (1/16 miles)
==========================

A. CLASSES OF RACE:

- Class A - Vespa <150cc (Std Body)
- Class B - Vespa <200cc (Std Body)
- Class C - Vespa / Lambretta (Open)
- Class D - V100 (Open)
- Class E - Scooped Std Body (Ego / Nuovo)
- Class F - Scooped Open (Ego / Nuovo)
- Class G - VS<150cc (Std Body)
- Class H - VS/Gilera<200cc (Open)

B. REGISTRATION FEE:

- RM70.00 cash + RM30 your discount voucher

C. PRIZES FOR WINNERS:

- 1st RM700.00 + Trophy + Goodies
- 2nd RM400.00 + Trophy + Goodies
- 3rd RM250.00 + Trophy + Goodies
- 4th RM150.00 + Trophy + Goodies


2.BIKE AUTOSHOW COMPETITION (IN-DOOR)
============================

A. CLASSES:

Class A - Air-Brushing (Open)
Class B - Custom Sticker/Paint (Open)
Class C - Extreme Accessories (Scooter & Cub)
Class D - Yamaha LC Open
Class E - Yamaha Lagenda Open
Class F - Vespa Classic
Class G - Vespa Standard - Super
Class H - Vespa Standard - PS/PX
Class I - Vespa Modified
Class J - Lambretta Standard
Class K - Lambretta Extreme (Modified / Mods)
Class L - Honda Classic Standard
Class M - Honda Classic Extreme (Modified)
Class N - British Classic Standard
Class O - British Classic Extreme (Modified)
Class P - Retro Bikes <150cc
Class Q - Retro Bikes >151cc
Class R - Chopper Bikes Standard
Class S - Chopper Bikes Extreme (Custom-Made)
Class T - Scrambler Sporty Look
Class U - Kawasaki KSR Open

B. REGISTRATION FEE:

- RM0.00 (just present your PSK12 official participant tag)

C. PRIZES FOR WINNERS:-

- 1st RM250.00 + Trophies + Goodies
- 2nd RM150.00 + Trophies + Goodies
- 3rd RM100.00 + Trophies + Goodies
- 4th to 6th Medal


3. LIVE PSK12 INDIE WOODSTOCK (OUT DOOR):
============================

- 30 over bands line up from all kinda musics genre

A. DAY 1 - Saturday - 28 Apr 2012
1. The Sircuse
2. The Rootstalk
3. Brain Jelly
4. Homerun
5. Whales
6. Final Chapter
7. Anthena
8. Spritz
9. The Alif
10. Merkmaid
11. Kill My Bride
12. Miss Fortune Befalls
13. Dead Cities
14. Prognosis Death

B. DAY 2 -Sunday - 29 Apr 2012
1. Roots N Boots
2. Couple
3. Skudap Skudip
4. Grey Sky Morning
5. Coca D Monday
6. The Nationhead
7. Moda Moody
8. Zipziller
9. The Everyday
10. Orkeska
11. Julies Goes Overysea
12. Secretypes
13. Carbon 4Teen
14. Bliz


4. OTHER ACTIVITIES (IN-DOOR):
====================

- Sponsors Product Promotions
- Naza Bikers 2 Wheel Events
- WaKaKa Entertainment Show
- Demo live Air-Brush / Tattoo Air-Brush
- International Artist Performer
- Local Artist Performer
- Cat Walk Runway Models
- Beat Box Competition
- Hip Hop 4 x 4 Competition
- Shuffle Dancing Competition
- Michael Jackson & Elvis Presly Show
- Safety Talk & Defensive Driving Class
- Super Car & Sports Car Display Show
- Super Boat Display Show
- Vintage Car & Classic Car Display Show
- 4 x 4 Display Demo Show
- Moto GP Moto Bike Display
- Formula 3 Car Display & Demo Show
- Formula Car Competition by UKM
- Simulator Games Competition
- Cheer Leader & Pole Dance Show
- Charity Car Wash


5. OTHER ACTIVITIES (OUT-DOOR):
======================

- Car Drag Race Demo
- Bike Stunt Show / Competition
- Vespa Slow Riding / Push Start Competition
- Hot Air Ballon Free Ride
- Racing Drift Team Show
- Gymkhana Demo Show
- Rally Car Demo Show
- Split Fire & Flame Thrower Car Demo Show
- Go Kart Ride
- Racing Powerboat Demo Show
- Naza Dreams Jet Ski Display
- RC Drift Competition
- RC Helicopter & Speed Boat Demo Show


To follow updates and more info visit:
http://www.facebook.com/muscmotorsports

KL VESPA JAMBOREE 2011

On 21,22,23 October 2011 (Friday, Saturday & Sunday) will be held JAMBOREE VESPA MALAYSIA located at Titiwangsa Lake Recreational Park , Kuala Lumpur. Registration fee of RM20, Lodging, T-Shirt, Sticker & Souvenirs were also included. Various activities and lucky draws. The program organized by Vespa Association of Malaysia (PVM) sponsored by the Naza Group of the Association Companies. All Vespa, Vespa Riders, Vespa enthusiasts, the Public also invited to present to enliven the events. Thank you.

credit to Persatuan Vespa Malaysia (PVM)

Vespa Fiesta ICEPS 7

For more information logon to VESPA FIESTA ICEPS 7
credit to Yumie Vespa

PSK 2011( Perhimpunan Skuter Kebangsaan Malaysia )

Festival which is certainly always welcomed by all the local motorsport fans, it seems the National Scooter Assembly (PSK) will be held again in 2011!

Festival featuring a motorsport category in which the majority of the scooter is not only involved a scooter, but there are also sport moped and vespa.

Apart from the events that took place that would surely drag racing motor sports (sprint test), also will run the Autoshow, Extreme Games, Woodstock, stunts, and others.


Prior to this, according to plans PSK 2010 will be held on 11 and 12 December 2010, held at Stadium Putra Bukit Jalil (Parking A & B), but it had to be delayed for some reason.

Although the date has changed many times, it seems this time it has been fixed for the final will be held from 7 to 9 January 2011, and is based in the same place the Putra Stadium in Bukit Jalil.

Moto PSK 2011 also draw attention to, "When you meet a new time, a vast flood of consolidated power machinery. " Wow!

KBS are pleased to inform the sponsor in collaboration with MUSC and the other two will provide the Association Scooters, Vespa, Lambretta & National Motor Classic in 2011 as the ad above. Therefore, all citizens vespa & lammy respected throughout the country are invited to join the giant program.

Among the activities will be held: -
1) Scooter Sprint Test (By CC & Model)
2) Vespa Sprint Test (150cc &> 200cc)
3) Lambretta Sprint Test (Open CC)
4) Autoshow Scooters / Vespa / Lambretta / Asia Motor Classic / Classic Motor Continental
5) Competition Extreme Sports (BMX Flatland / Street Skateboard / In-Line Skate Street)
6) Battle of Woodstock Indie Bands
7) Stunt Riding Competition (Scooter / Vespa)
8) Cool Competition Riding Slow (Scooter / Vespa)
9) Big Screen Cinema (Open Air)
10) Booths Promotion & Sales
11) Fun Joint Sponsor Activities
12) And Many More..

Whatever, do not miss the opportunity to go to the National Scooter Assembly 2011!

Brought to you by the MUSC Motorsports.

Vespa Motor Scooter Model Guides to Buy Used or New Vespa Scooters

When going to look at a scooter for sale, it is good to have a firm knowledge of what you are looking at. Often, the titles are incorrect as to the year of the scooter, or the owner may not even know for sure what the scooter is. With the following guides, you can be better informed regarding the year and model of your scooter.

-->

VESPA 50 SPECIAL 1978 - 1983

EXTERNAL FEATURES

- Rectangular Headlamp and Speedo
- Detachable Horn Cover
- Small Panel Door only on right side

- 300 x 10 Wheels

INTERNAL FEATURES

- BORE 38.4mm, STROKE 43mm, Carb Size 16/16

- Can be increased to 125/135cc by changing the Crankshaft, Cylinder / Piston / Head, Head Cowling, Cylinder Holding Studs, Primary Gearing and Exhaust
- 6v AC unregulated power. Points Ignition

VESPA 90 AND VESPA 100 1964 - 1978

EXTERNAL FEATURES

- Round 105mm Headlamp and Small Round Speedo
- The horn cover is a part of the frame
- Small Panel door only on the right side

- 300 x 10 Wheels

INTERNAL FEATURES

- The crankshaft on the early V90 had a small End Brass Bush instead of a small End Bearing, making the piston not interchangeable with the later type unless the crankshaft was also changed
- BORE - V90 47mm, V100 49mm, STROKE - both have a 51mm Stroke
- Carb Size: V90 16/16 - V100 19/19
- 6V AC unregulated power. Points Ignition

100 SPORT 1976 - 1982

EXTERNAL FEATURES

- As Vespa 100 but Ignition Switch on the handlebars
- Directional Indicators, 115mm Round Headlamp
- Small panel door on both sides

- 300 x 10 Wheels

INTERNAL FEATURES

- As Vespa 100 but a USA specification machine with a daytime headlamp that cannot be turned off
- 12v DC powering Side Lights, Indicators, Horn And Brake Light, 12v AC regulated power used for the headlamp only

- Points ignition

PRIMAVERA 1966 - 1978

EXTERNAL FEATURES

- As above but with a round 115mm Headlamp and Eye Shaped Speedo
- 300 x 10 Wheels

INTERNAL FEATURES

- BORE - 55mm - STROKE 51mm

- Carb Size: 19/19
- 6v AC Unregulated Power
- Points Ignition

PK50S, PK50ES, PK80, PK100, PK125S 1982 - 1987

 EXTERNAL FEATURES

- Two piece handlebars with Round H/Lamp and Speedo
- Steering + Ignition Lock in one on the steering column
- Inside Legshield Toolbox
- Directional Indicators (no indicators on the PK100)
- Small Panel Door on both sides secured by locks above each door
- PK frames have an indentation in the frame under body close to the stand for exhaust clearance.
- Spare Wheel carrying facility under L/H Panel

- 300 x 10 Wheels

INTERNAL FEATURES

- The PK engine is basically an electronic 12V version of the V50/V90/V100/PRIM Engine
- BORE - PK50S+ES 38.4mm, PK100 49mm, PK125S+ES 55mm
- STROKE - PK50 43mm, all other PK models 51mm
- Same Crankshaft Taper as the V50/PRIM
- The PK50S was restricted to 30 MPH by a 16/10 Carb
- If changing engine for older style V50/PRIM: The PK Carburetor Inlet Manifold has to be retained because it points approx 1" over to the left more than the V50/PRIM
- PK50S + PK125S use 12v AC regulated lighting
- PK100 use 6v AC unregulated power, and has no indicators
- PK50ES + PK125ES use 12v DC power for Electric Starter, Horn, Indicators and Brake Light and use 12v AC power for headlights
- Electronic Ignition

PK125 ETS 1985 - 1987

EXTERNAL FEATURES

- Same headlight as PK models but has slightly different shaped handlebar cover
- Has sporty look and unique Cigar Shaped Exhaust that fits on L/H/S which means you could not fit a spare wheel under the L/H side panel
- Also has small Horn Grille Cut into the Legshield to the right of the horn casting
- 300 x 10 Wheels

INTERNAL FEATURES

- Same as PK125S + ES, BORE 55mm, STROKE 51mm, Electronic Ignition 12V AC regulated power

PK50XL, PK100XL, PK125XL 1987 - 1993

EXTERNAL FEATURES

- As PK/S above but with a Fuel Gauge in the Speedo, Floor Mats and Plastic Colour matched seat base and rear lower bodywork protection
- Panel Doors released by cable operated panel locks under the seat

- 300 x 10 Wheels

INTERNAL FEATURES

- Carburetor Inlet Manifold is held onto the engine by 3 Studs where as all the other small frame VESPA's have two
- Uses PX flywheel side Needle Bearing and Oilseal
- Larger Taper on the Crankshaft
- As above using 12v AC regulated power, Electronic Ignition (PK50XL now superseded by PK50 - FL2)

P125X, PX125E, P150X, P200E, PX200E 1978 - 1984

EXTERNAL FEATURES

- Ignition Switch in top handlebars
- Large Fully Detachable side panels
- Directional Indicators
- Spare Wheel Carrier under L/H panel
- Some later PX-E models had Oil Injection and 20mm Front Wheel Axle (known as PRE EFL models)
- 350 x 10 Wheels.

INTERNAL FEATURES

- BORE - P125X 52.5mm, P150X 57.8mm, P200E 66.5mm
- STROKE - All models 57mm
- 12v AC regulated power is used on all PX/PE models
- P125X, P150X use Points Ignition
- PX125E, P200E and PX200E use Electronic Ignition

PX125E-EFL, PX200E-EFL 1984 - 1999

EXTERNAL FEATURES

- As above but with the Ignition Switch Moved and integrated with the steering lock in the steering column, fuel gauge in the Speedo
- All EFL models are Oil Injection Type

- The side panels are clamped in place with handles under the seat.

- 350 x 10 Wheels

INTERNAL FEATURES

- As above but all models Electronic Ignition
- Some machines may have Electric Start and COSA Clutch
- 1999 versions of the above two models now have front disc brake fitted
- 2001 summer versions have Halogen Headlamp, Chrome Fittings and Vintage Style Speedo

PX125 DISC, PX200 DISC 1999 - 2000 >

EXTERNAL FEATURES

- As above but they have a front Disc Brake fitted with Star Shaped Front Hub.
- Summer Year 2000 onwards features - Halogen Headlamp, Chrome Fittings and Vintage Style Speedo.
- New Stylish seat, Chrome Rear Lamp and Indicator Units with Clear Lenses.

INTERNAL FEATURES

- As above all models Electronic Ignition
- All machines have Electric Starter and COSA Clutch



T5 1985 - 1992

EXTERNAL FEATURES

- The frame is basically the same as PX125EFL but the rear section of the frame was extended to fit a longer seat unit, this can be seen as a seam above each panel
- The PX style floor runner strips where replaced by floor mats held in place by a spoiler
- A new style rectangular headlamp was fitted and a very large d shaped Speedo with a REV counter and a fuel gauge
- A small screen blade was fitted onto the top of the headset

- 350 x 10 Wheels

INTERNAL FEATURES

- BORE - 55mm, STROKE - 52mm
- A 5 Port Aluminium Barrel with a 2 Stud Loose Flange type exhaust fitting
- 12v AC regulated lighting power, electronic ignition

T5 CLASSIC 1993 - 1999

EXTERNAL FEATURES

- Not as T5 above but as the PX/EFL this machine was made after the T5 named "CLASSIC" due to its older PX type styling
- Uses floor mats and a spoiler as per the T5 but that's all.
- Handlebars are normal PX-EFL round headlamp and Speedo with fuel gauge.

- 350 x 10 Wheels

INTERNAL FEATURES

- Same engine as the T5 engine above
- Although the T5 engine casings and most of the top end components are unique to the T5, the engine as a unit will slot straight into a PX with no alterations necessary

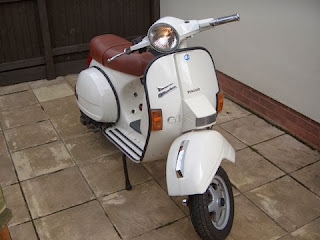

T5 MILLENNIUM 1999 - 2000

EXTERNAL FEATURES

As the T5 Classic but featured a disc brake and had a COSA type clutch fitted.

COSA (1) 125/200 1988 - 1992

EXTERNAL FEATURES

- Flatter more flush fitting horn cover and toolbox than PX models
- Ignition-Toolbox-Steering Lock, all one lock seat lock on side of the seat, with met-in facility under the seat.
- Round headlamp and an arch shaped Speedo with a rev counter and a fuel gauge, colour matched mirrors
- Hydraulic linked brakes - via the rear brake pedal
- 100 / 90 x 10 Wheels

INTERNAL FEATURES

- Engine mostly as PX125 or PX200 but with different casings, all models are Oil Injection, Electric Start was optional on both the 125cc and 200cc.
- Exhausts look like PX type but use a longer
- 3 inch bolt the Carb uses an air filter on the Carb and a secondary air filter in the air box accessed
- In the met-in compartment under the seat

COSA (2) 125/200 1992 - 1997/8

EXTERNAL FEATURES

- As above but the trim colour was now more of a Brown/Grey
- The wheel discs on the old COSA were replaced by a thinner
- Type ring that just covered the wheel nuts, the front suspension unit had no cover but had a chrome spring
- The seat lock was moved back to the rear of the seat, which was a more aftermarket looking seat
- With a colour matched plastic seat rear section, the mirrors on this model were not painted.
- 100 / 90 X 10 Wheels

INTERNAL FEATURES

- As above but very late models may have aluminium cylinder
- Also gear selection is by one single PUSH/PULL thick gear cable

Vespa Piaggio Motor Scooters Engine Number and Type

Engine Number

Most Vespa Engine Numbers Can Be Located Just Below The Kickstart Pedal

On The Main Section Of The Swinging Arm.

Frame Number / Chasis Number

Most Frame/Chassis Numbers Are Under The Engine Side Panel At The

Bottom Next To The Locating Hole.

Some Early Models Will Be At TheBottom Of The Tool Box/Side Panel

Or In Side The Side Panel/Tool Box, A Torch May Be Required To View.

Vespa Chassis Number and Type by model and year

Vespa 50 ccm

Name	Year	Type	Chassis Number
Vespa 50/N	1963 - 1971	V5A1T	1001 - 283299
Vespa 50/5	1963 - 1990	V5A1T	1101 - 144061
Vespa 50/L	1966 - 1967	V5A1T	500001 - 530932
Vespa 50/L	1967 - 1970	V5A1T	540001 - 637063
Vespa 50/R	1969 - 1983	V5A1T	700001 - 938761
Vespa 50 Special	1969 - 1972	V5A2T	1001 - 96013
Vespa 50 Elestart	1969 - 1972	V5A3T	1001 - 5708
Vespa 50 Special	1972 - 1975	V5B1T	1001 - 95671
Vespa 50 Elestart	1972 - 1975	V5B2T	1001 - 3667
Vespa 50 Special	1975 - 1983	V5B3T	1101 - 565056
Vespa 50 Elestart	1975 - 1976	V5B4T	1101 - 1533
Vespa 50/S	1963 - 1984	V5SA1T	1101 - 130121+
Vespa 50 super sprint	1965 - 1971	V5SS1T	1001 - 3525
Vespa 50 Sprinter	1971 - 1979	V5SS2T	4001 - 10579
Vespa PK50	1982 - 1988	V5X1T	1101 - 17512
Vespa PK50S	1982 - 1986	V5X2T	1101 - 221578
Vespa PK50S Elestart	1983 - 1986	V5X2T	3000001 - 3009325
Vespa PK50SS	1983 - 1987	V5S1T	1101 - 7172
Vespa PK50SS Elestart	1983 - 1986	V5S1T	3000001 - 3001208
Vespa Automatica PK50S	1984	VA51T	1101 - 1352
Vespa Automatica PK50S El	1984 - 1986	VA51T	3000001 - 3002122
Vespa PK50XL Plurimatic	1986 - 1989	VA52T	1101 - 4989
Vespa PK50XL	1985 - 1990	V5X5T	1101 - 193519
Vespa PK50XL Elestart	1985 - 1990	V5X3T	3000001 - 3010706
Vespa PK50XL Plurimatic El	1986 - 1990	V???T	3000001 - 3014507
Vespa PK50XLS	1986 - 1990	V5S2T	001101 - 016464
Vespa PK50XLS Plurimatic	1987 - 1987	VA51T	1101 - 1670
Vespa PK50XLS Plurimatic El	1987 - 1989	VA51T	3000001 - 3000999
Vespa PK50XL Rush	1988 - 1990	V5X4T	1101 - 62170
Vespa PK50XL Rush Elestart	1988 - 1988	V5X4T	3000001 - 3002036
Vespa 50N	1989 - 1990	V5X5T	1101 - 44579
Vespa 50N Plurimatic	1989 - 1990	V5P1T	1101 - 6025
Vespa Scatto	1990 - 1990	TVP1T	1101 - 7948
Vespa Sfera	1990 - ?	NSL1T	1101 - 2318
Vespa 50	1990 - 1990	VSN1T	1101 - 57991
Vespa 50 Automatica	1990 - 1990	V5P2T	1101 - 9064

Vespa 80 ccm

Name	Year	Type	Chassis Number
Vespa P80 - P80E	1980 - 1983	V8A1T	1001 - 9923
Vespa P80X - P80XE	1981 - 1983	V8X1T	1101 - 45710
Vespa PX80E Arcobaleno	1983 - 1990	V8X1T	100001 - 112348
Vespa PK80S	1982 - 1986	V8X5T	1101 - 6214
Vespa PK80S Elestart	1983 - 1984	V8X5T	3000001-300XXXX
Vespa Automatica PK80S	1984	VA81T	1101 - 2331
Vespa Automatica PK80S El	1984 - 1986	VA81T	3000001 - 3000737
Vespa PK80E Arcobaleno El	1984 - 1990	V8X1T	3000001 - 300335

Vespa 90 ccm

Name	Year	Type	Chassis Number
Vespa 90	1963 - 1984	V9A1T	1001 - 300026
Vespa 90 Super Sprint	1965 - 1971	V9SS1T	1001 - 6309
Vespa 90 Racer	1971 - 1974	V9SS2T	7001 - 10516

Vespa 98-100 ccm

Name	Year	Type	Chassis number
Vespa V98	1946 - 1947	V98	01 - 18079
Vespa 100	1978 - 1983	V9B1T	1101 - 28904
Vespa 100	1983 - 1990	V9B1T	50001 - 107758
Vespa PK100S	1982 - 1990	V9X1T	1101 - 69175
Vespa PK100S Elestart	1983 - 1986	V9X1T	3000001 - 3000158
Vespa PX100E	1983 - 1985	V1X1T	1101 - 44104
Vespa PK100XL	1986 - 1990	V9X2T	1101 - 2197

Vespa 125 cmm

Name	Year	Type	Chassis Number
Vespa 125 / 125 Super	1948 - 1950	V1-15T	0001 - 104096
Vespa 125 / 125 Super	1950 - 1952	V33T	104097 - 251820
Vespa 125 / 125 Super	1952 - 1953	VM1T	1001 - 85870
Vespa 125 / 125 Super	1953 - 1954	VM2T	85871 - 176014
Vespa 125 / 125 Super	1953	VU1T	1001 - 7001
Vespa 125 / 125 Super	1954 - 1955	VN1T	1001 - 50100
Vespa 125 / 125 Super	1956 - 1957	VN2T	50101 - 125600
Vespa 125 / 125 Super	1957 - 1958	VNA1T	1001 - 68031
Vespa 125 / 125 Super	1958 - 1959	VNA2T	68032 - 116431
Vespa 125 / 125 Super	1959 - 1961	VNB1T	1001 - 89850
Vespa 125 / 125 Super	1961	VNB2T	1001 - 38699
Vespa 125 / 125 Super	1961 - 1962	VNB3T	34700 - 90395
Vespa 125 / 125 Super	1962 - 1963	VNB4T	90396 - 136485
Vespa 125 / 125 Super	1963 - 1964	VNB5T	1001 - 43240
Vespa 125 / 125 Super	1964 - 1966	VNB6T	1001 - 37028
Vespa 125 Super	1965 - 1969	VNC1T	1001 - 25146
Vespa 125 Primavera	1965 - 1967	VMA1T	1001 - 18100
Vespa 125 Primavera	1967 - 1983	VMA2T	20001 - 240329
Vespa 125 GT/Sprint	1966 - 1973	VNL2T	30001 - 81582
Vespa 125 GTR	1968 - 1978	VNL2T	100001 - 151788
Vespa 125 TS	1975 - 1978	VNL3T	1101 - 29804
Vespa Primavera ET3	1976 - 1990	VMB1T	1101 - 148923
Vespa P125X	1977 - 1982	VNX1T	1101 - 198248
Vespa PX125E	1981 - 1984	VNX2T	1101 - 135966
Vespa PX125E Arcobaleno	1983 - 1993	VNX2T	135402 - 284846
Vespa PK125	1982 - 1985	VMX1T	1101 - 8378
Vespa PK125S	1982 - 1986	VMX5T	1101 - 62606
Vespa PK125S Elestart	1983 - 1986	VMX5T	3000001 - 3006295
Vespa Automatica PK125S	1983 - 1986	VAM1T	1101 - 3366
Vespa Automatica PK125S El	1983 - 1984	VAM1T	3000001 - 3007758
Vespa PK125ETS	1984 - 1985	VMS1T	1101 - 12811
Vespa PX125E Arcobaleno El	1984 - 1990	VNX2T	3000001 - 3020135
Vespa PX125 T5	1985 - 1990	VNX5T	1101 - 37161
Vespa PX125 T5 Elestart	1985 - 1990		3000001 - 3005013
Vespa PK125XL	1986 - 1990	VMX6T	1001 - 54751
Vespa PK125XL Elestart	1986 - 1990	VMX6T	3000001 - 3006631
Vespa Cosa 125	1987 - 1990	VNR1T	1101 - 4844
Vespa Cosa 125 Elestart	1987 - 1990	VNR1T	3000001 - 3017315
Vespa PK125XL Plurimatic	1987 - 1990	VVM1T	1101 - 20103
Vespa PK125XL Plurimatic El	1987 - 1990	VVM1T	3000001 - 3001582
Vespa 125 Automatica	1990 - 1990	VVM2T	1101 - 1556
Vespa 125	1990 - 1990	VMX7T	1101 - 3046
Vespa 125	1990 - 1991	VMX7T	1000001 - 1002463

 Vespa 150-160-180

Name	Year	Type	Chassis Number
Vespa 150 / 150 Super	1954 - 1955	VL1T	1001 - 17000
Vespa 150 / 150 Super	1955 - 1956	VL2T	17001 - 93101
Vespa 150 / 150 Super	1956 - 1957	VL3T	93102 - 132737
Vespa 150 / 150 Super	1957 - 1958	VB1T	1001 - 99700
Vespa 150 / 150 Super	1958 - 1960	VBA1T	1001 - 125040
Vespa 150 / 150 Super	1960 - 1962	VBB1T	1001 - 146000
Vespa 150 / 150 Super	1962 - 1967	VBB2T	146001 - 280148
Vespa 150 / 150 Super	1965 - 1979	VBC1T	1001 - 554808
Vespa 150 GL	1957 - 1958	VGL1T	1001 - 16610
Vespa 150 GL	1959 - 1961	VGLA1T	1001 - 35267
Vespa 150 GL	1961 - 1962	VGLB1T	35268 - 48294
Vespa 150 GL	1962 - 1965	VLA1T	1001 - 80855
Vespa 150 Sprint	1965 - 1974	VLB1T	1001 - 1205477
Vespa 150 Sprint Veloce	1969 - 1979	VLB1T	150001 - 368119
Vespa 150 GS	1955	VS1T	1001 - 13300
Vespa 150 GS	1956	VS2T	13301 - 23310
Vespa 150 GS	1957	VS3T	23311 - 35310
Vespa 150 GS	1958	VS4T	35311 - 47350
Vespa 150 GS	1958 - 1961	VS5T	47351 - 127350
Vespa 160 GS	1962 - 1964	VSB1T	1001 - 61000
Vespa 180 Super Sport	1964 - 1968	VSC1T	1001 - 36700
Vespa 180 Rally	1968 - 1973	VSD1T	1001 - 27495
Vespa P150S	1978 - 1990	VBX1T	1101 - 299155
Vespa P150X	1978 - 1981	VLX1T	1101 - 346402
Vespa PX150E	1981 - 1985	VLX1T	346403 - 552410
Vespa PX150E Arcobaleno	1983 - 1990	VLX1T	600001 - 803233
Vespa PX150E Arcobaleno	1985 - 1990	VLX1T	2000001 - 2821048
Vespa PX150E Arcobaleno El	1984 - 1990	VLX1T	3000001 - 3010079
Vespa Cosa 150	1987 - 1990	VLR1T	1101 - 4308
Vespa Cosa 150 Elestart	1987 - 1990	VLR1T	3000001 - 3009413

Vespa 200

Name	Year	Type	Chassis Number
Vespa 200 Rally	1972 - 1979	VSE1T	1001 - 42275
Vespa P200X	1977	VSX1T	100 - 1700
Vespa P200E	1977 - 1982	VSX1T	1101 - 160000
Vespa PX200E	1982 - 1986	VSX1T	160001 - 195545
Vespa PX200E Arcobaleno	1983 - 1990	VSX1T	300001 - 424579
Vespa PX200E Arcobaleno El	1981 - 1990	VSX1T	3000001 - 3022538
Vespa Cosa 200	1988 - 1990	VSR1T	1101 - ???
